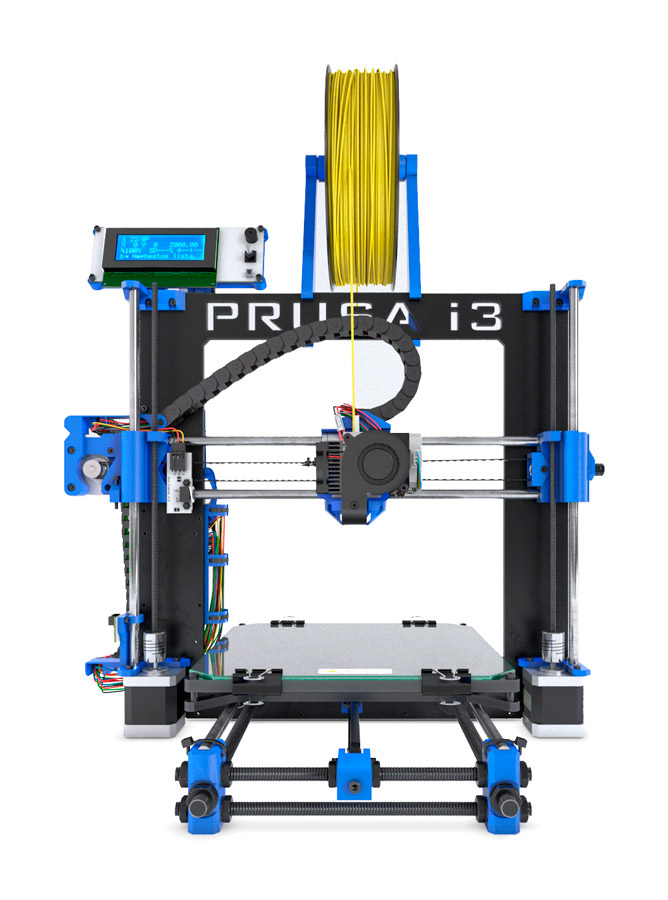

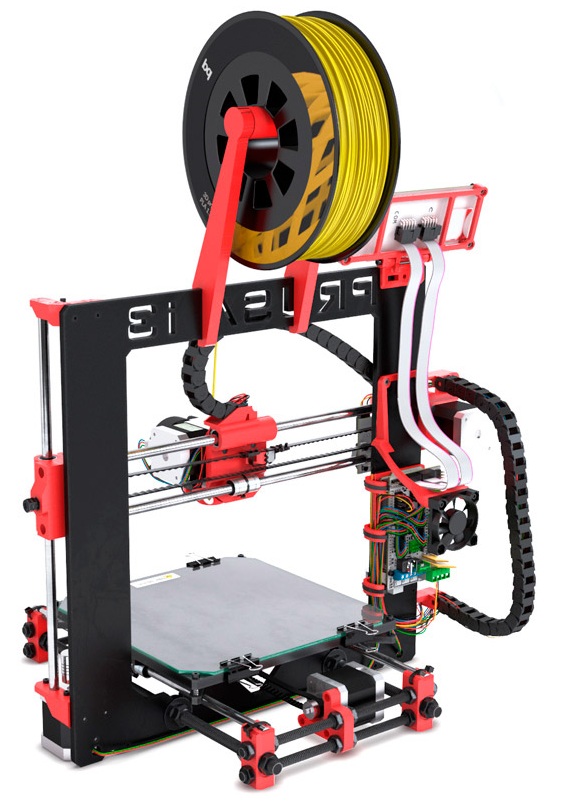

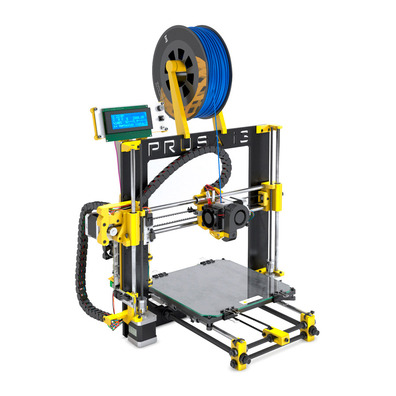

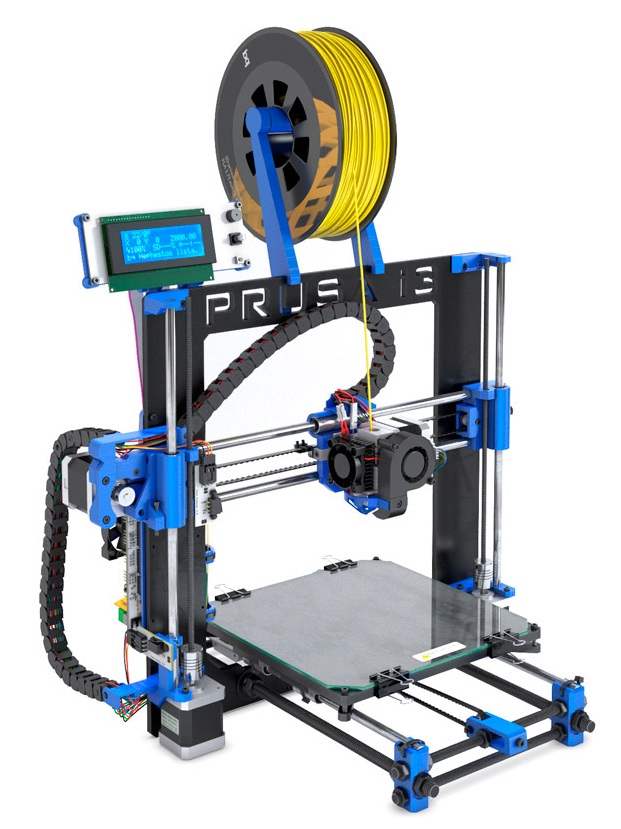

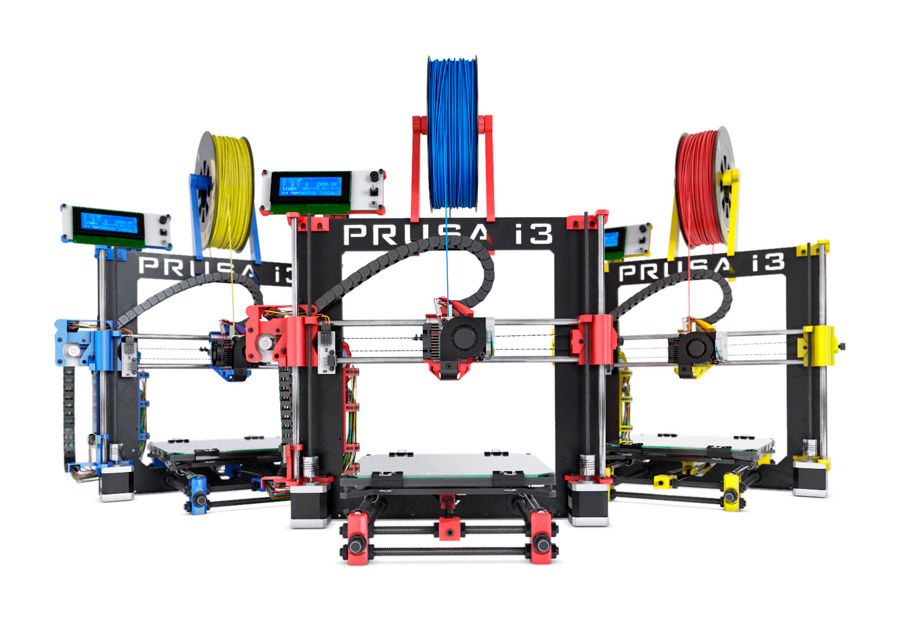

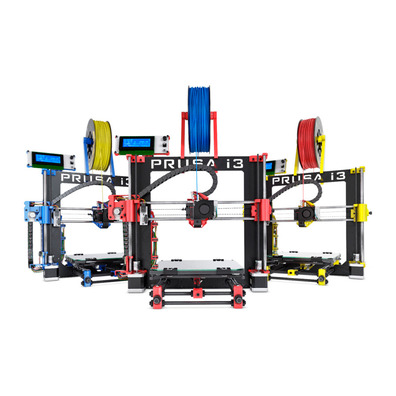

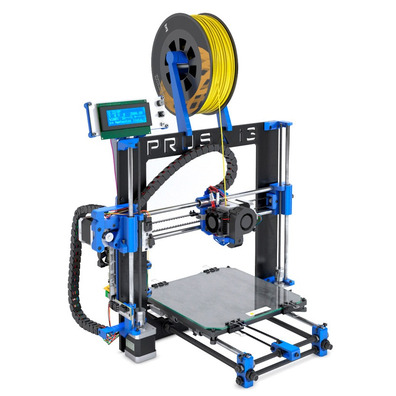

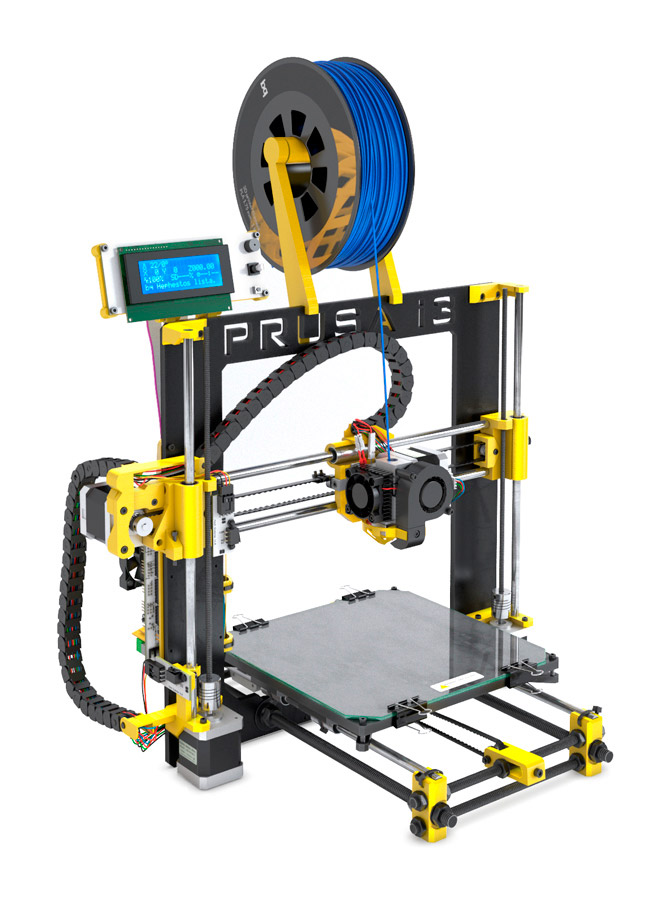

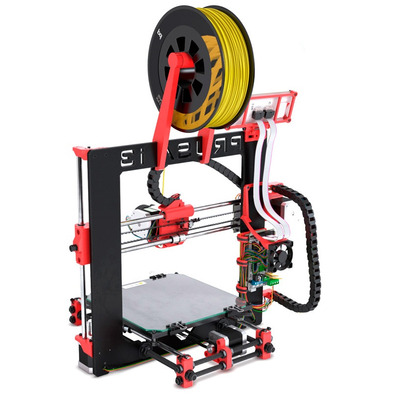

3D printer Prusa i3 Hephestos Gelb
Verfügbarkeit:Kein Vorrat
432,72€
(15.000 Kg.)
Lieferfrist: ca. 3-5 TageOptionen anschauen
3D printer Prusa Hephestus.
Specifications:
Dimensions
- Printer without coil PLA: 460 x 370 x 510 mm
- Coil printer PLA: 460 x 370 x 583 mm
- Print Area: 215 x 210 x 180 mm
Resolution
- Very High 60 microns
- High 100 microns
- Media 200 microns
- Baja 300 microns
Printing speed
- Recommended speed 40-60 mm / sec
- Maximum recommended speed 80-100 mm / sec
Electronics
- Ramps 1.4
- Mega 2560
- LCD screen with rotary encoder with push button for navigation
- Cold glass base size 220 x 220 x 3 mm
- 220 Power Supply 100W DC AC 12
- 100k thermistor extruder
- Cartridge Heater 40W 12V
General Mechanics
- Aluminum base frame and powder coated
- Hard chrome bars for trucks X, Y, Z
- Linear ball bearing LM8UU for X, Y, Z
- B623ZZ axial ball bearing pulleys for X, Y
- Igus Energy Chains
- Flexible couplings to the Z-axis threaded rods
- Leveling system print base with 4 points and damping
- Quick Change System printer dock with Clips
- Brushless axial fans with ball bearings
- Printed pieces in PLA
Mechanical extruder
- Extruder own
- Nozzle 0.4 mm to 1.75 mm filament
- Sink fins with axial fan
Part cooling nozzle
- Materials PLA, HIPS, among others FilaFlex
Software
- Marlin firmware derivative
- Recommended environment: Cura Software, Slic3r, Repetier, Kisslicer
- Supported File: .gcode
- Supported operating systems: Windows XP and higher, Mac OS X and higher and Linux
Communications
- SD Card Reader
- USB Type B port
- Security Extruder protected piece of own
Box Contents
- 6 mounting rails
- Quality certificate
